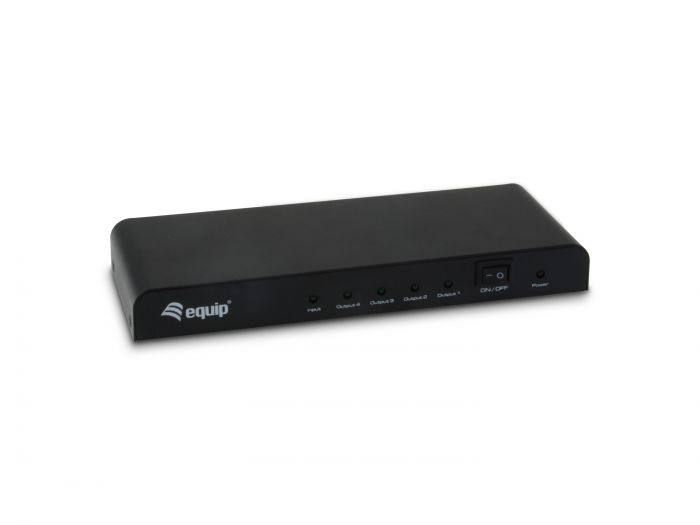

332714 4-Port HDMI 1.4 Splitter, 4K/30Hz

Model Number.

332714

SKU

332714

Duplicates a HD digital audio/video signal up to 4 x HDMI output

HDMI 1.4 compatible and Full 3D

Supports 3D format video transmission

Compatible to HDCP 1.4

Compatible with a bandwidth of 3.4Gbps / 340MHz per channel (10.2Gbps Total)

Supports video resolutions up to 4K/30Hz

Supports Deep Color: 36bit (12 bit per channel)

Supports Auto EDID

Maternal: Aluminum casing

Included power adapter

Details

The equip 4-Port HDMI Splitter distributes 1 video stream to 4 displays, bringing synchronized, high-definition video to convention centres, home theaters, shopping areas and campuses with ease.

Specifications

More Information
Port Configuration
HDMI out	4
HDMI in	1
Logistics Data.
Harmonized System (HS) code.	854370
Customs product code (TARIC).	8543709099
General.
Color.	Black
EAN.	4015867161951
Model Number.	332714
Physical Specifications.
Dimensions (W x D x H).	179 x 68 x 20 mm
Product weight (kg).	0,384
System Specifications.
Audio format.	DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby AC3/DSD
Frequency band.	2.97Gbps
Material.	Aluminum
Power supply.	Power adapter 5V/1A
Standards.	HDMI 1.4
Video format.	24bit/deep color 30bit,36bit, 48bit
Others.
Approval and Compliance.	RoHS, CE
Operating temperature.	0°C ~ 60°C
Package Contents.	4-Port HDMI Splitter Power Adapter User manual Quick Installation Guide
