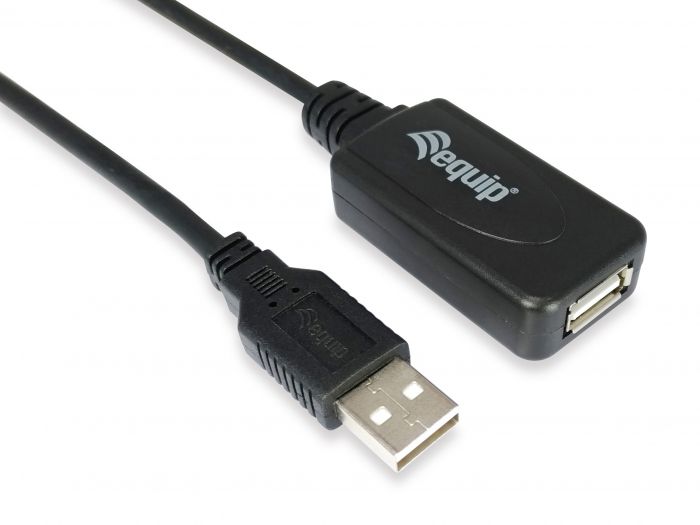

133311 USB 2.0 Type A Active Extension Cable Male to Female, 15m
Model Number.
133311
SKU
133311
The equip® USB 2.0 Active Extension Cable is built with active component and thus allows you to extend the USB connections with additional 15m or 20m. Plug-and-play, simply connect the extension cable with existing installation and build up a sustainable high speed USB deployment
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854442 |
| Customs product code (TARIC). | 8544421000 |
| Features 1. | |
| Angled Plug. | No |
| Shielded. | Yes |
| Miscellaneous. | |
| Connector 1. | USB-A, male |
| Connector 2. | USB-A, female |
| Physical Specifications. | |
| Cable Length. | 15m |
| Dimensions (W x D x H). | 15.5 x 8 x 15000 mm |
| Product weight (kg). | 0,457 |
| System Specifications. | |
| Conductor material. | Copper |
| Conductor size (AWG). | 28AWG |
| Data Rate. | 480Mbps |
| Cable Jacket material. | PVC |
| Standards. | USB 2.0 |
| Others. | |
| Approval and Compliance. | RoHS |
| Package Contents. | USB 2.0 Type A Active Extension Cable |
| General. | |
| Color. | Black |
| EAN. | 4015867459980 |
| Model Number. | 133311 |
