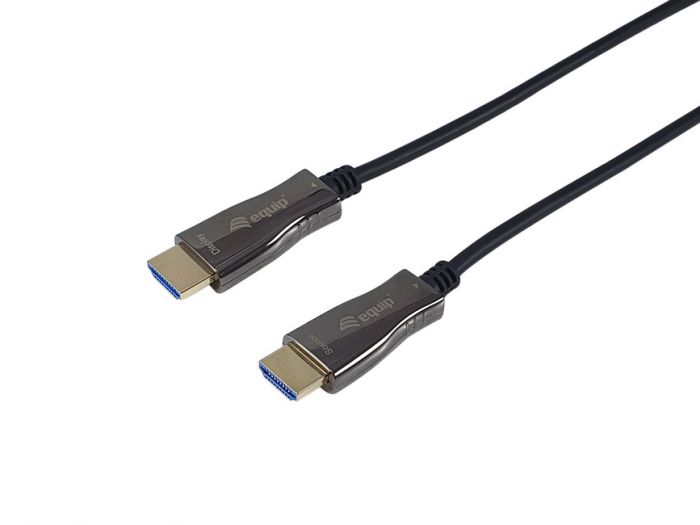

119431 HDMI 2.0 Active Optical Cable, 50m, 4K/60Hz, 18Gbps
Model Number.
119431
SKU
11943107201
4k: 3840 x 2160 @ 60 Hz.
2k: 2560 x 1440 @ 144 Hz.
1080P: 1920 x 1200 @ 240 Hz.
The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 854442 |
| Customs product code (TARIC). | 8544421000 |
| Miscellaneous. | |
| Max. Resolution. | 4K/60Hz |
| Connector 1. | HDMI-A, male |
| Connector 2. | HDMI-A, male |
| Physical Specifications. | |
| Cable Length. | 50m |
| Dimensions (W x D x H). | 50000 x 19.5 x 10 mm |
| Product weight (kg). | 1.46 |
| System Specifications. | |
| Conductor material. | Copper |
| Data Rate. | 18Gbps |
| Cable Jacket material. | PVC |
| Standards. | HDMI 2.0 |
| Others. | |
| Approval and Compliance. |
CE , RoHS |
| Package Contents. | HDMI 2.0 Active Optical Cable, 50m |
| General. | |
| Color. | Black |
| EAN. | 4015867234037 |
| Model Number. | 119431 |
Download PDF
