10-Port L2 Managed Gigabit Ethernet PoE Switch, 2 x Gigabit SFP, 802.3af/at PoE, 8-Port PoE Outputs, 185W Power Budget OSW-1061
Model Number.
OSW-1061
SKU
52092203101
The OSW-1061 is a L2 Managed PoE Industrial Switch with 8 ports of Gigaibit RJ45 PoE and 2 ports of Gigabit SFP. This switch is offering full suite of L2 management features, better PoE functionality with 185W PoE power budget and usability.

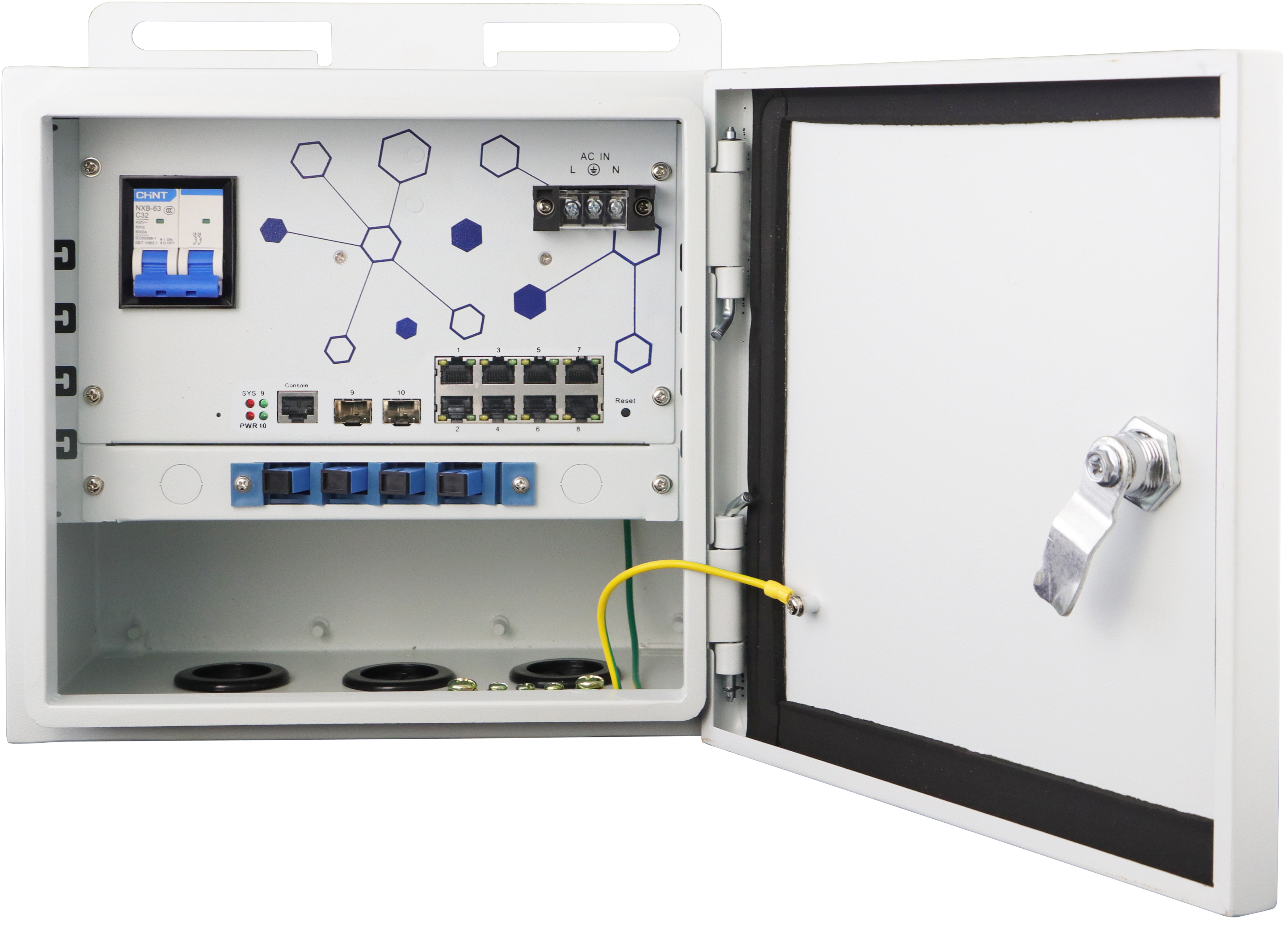

The OSW-1061 switch is designed to withstand outdoor or harsh environments, and can be mounted on a wall, pole, or cabinet to fit your space and layout.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. |
Quality of Service (QoS): ● Traffic classification based on IEEE 802.1p CoS ● IPv4/IPv6 precedence/ type of service (ToS) / DSCP based Rate Limiting - Ingress policer egress shaping and rate control Spanning Tree: ● Bridge Protocol Data Units (BPDU) IEEE 802.1D MAC Bridges ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● Virtual Local Area Network (VLAN): 802.1Q tag-based VLAN - up to 4K VLANs and 4K VLAN IDs Port-based VLAN ● Port Isolation ● Port Mirror /Remote Mirror ● Broadcast / Multicast / Unknown Storm Control 802.1X ● ACL ● Port Security ● MAC Filter ● IP Source Guard SSH ● System Password protection NTP/SNTP ● Firmware upgrade /download (HTTP/TFTP/FTP) RMON/ SNMP ● Management Access (Console / SNMP/ Web / Telnet) Memory Flash Log ● Event /Error Log DHCP v4/v6 Snooping ● DHCP Snooping Option82 |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | Yes |
| Manageable. | Yes |
| Fanless. | No |
| Concurrent ports. | Total 10.00 |
| PoE Power Budget. | Total 185.00 |
| System Specifications. | |
| Power supply. | Industrial Power included |
| Data Rate. | 1Gbps |
| Power supply included. | Yes |
| Power input. | VAC100-240V, 50/60Hz |
| Power consumption. | 200 Watt |
| MTBF. | 4,000,000 hours |
| Packet forwarding rate. | 14.88Mpps |
| Port Configuration. | 10/100/1000 Mbps PoE x 8, SFP x2 , SC Fiber Tray x4 , AC IN |
| IP grade. | IP55 |
| Standard. |
● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX (Fast Ethernet) ● IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) ● IEEE 802.3x Full Duplex and flow control ● IEEE 802.3z Gigabit Ethernet over Fiber-Optic ● IEEE 802.3ah OAM ● IEEE 802.3af Power over Ethernet ● IEEE 802.3at Power over Ethernet Plus ● IEEE 802.3bt Power over Ethernet ++ ● IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring) ● IEEE 802.1s Multiple Spanning Tree (MSTP) ● IEEE 802.1X authentication ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad Link aggregation control protocol ● IEEE 802.1w Fast Spanning Treel ● IEEE 802.1d Standard Spanning Tree ● IEEE 802.1p priority tags ● IEEE 802.3ah OAM ● IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring) ● IEEE 802.1v Protocol-based VLAN ● IEEE 802.1Q tag-based VLAN - up to 256 VLANs and 1~4095 VLAN IDs |
| Power Output. | PoE output max. 185W |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Mount. | Pole mount |
| Flash memory size. | 120 |
| RAM size. | 1M |
| MAC address table. | 8K |
| Jumbo frame (KB). | 9K |
| Indicators. | Power/Link Act |
| Backplane (Gbps). | 20 |
| Others. | |
| Approval and Compliance. | CE/FCC |
| Operating humidity. | 0% RH ~ 90% RH |
| Operating temperature. | -20°C ~ 65°C |
| Storage humidity. | 0% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 75°C |
| Package Contents. |
QIG ECDoC Pole Mount Ring 7" Waterproof Pad x 2 Box Key |
| General. | |
| Color. | White |
| EAN. | 4015867236444 |
| Model Number. | OSW-1061 |
| Physical Specifications. | |
| Product weight (kg). | 8 |
| Dimensions (W x D x H). | 280x200x250 |
